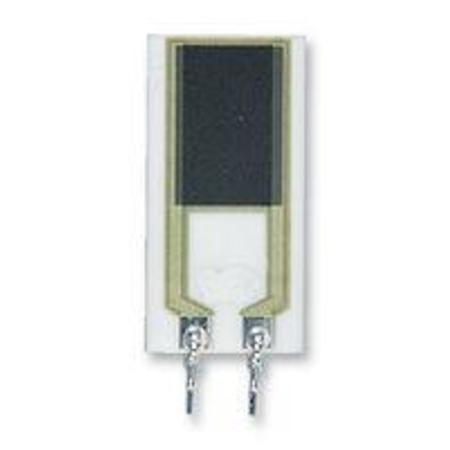

23665 - RESISTOR 5K0 MPC05 THICK FILM 5W RADIAL 5%

23665

TYCO

Thick Film

Resistance: 5Kohm
Resistance Tolerance: ± 5%
Power Rating: 5W
Voltage Rating: 300V
Temperature Coefficient: ± 100ppm/°C
Resistor Element Material: Thick Film
Resistor Terminals: Radial Leaded
Resistor Mounting: Through Hole
Dielectric Strength VDC: 5000V
External Depth: 25.4mm
External Length / Height: 25.4mm
External Width: 12.7mm
Full Power Rating Temperature: 70°C
Lead Spacing: 5.08mm
No. of Pins: 2
Operating Temperature Max: 155°C
Operating Temperature Min: -55°C
Operating Temperature Range: -55°C to +155°C
Package / Case: Radial
Series: MPC
Temperature Coeff. +: 100ppm/°C
Temperature Coeff. -: 100ppm/°C
Tolerance +: 5%
Tolerance -: 5%
Voltage Rating V AC: 300V
